Modelling and simulation of DME Navigation global Service volume

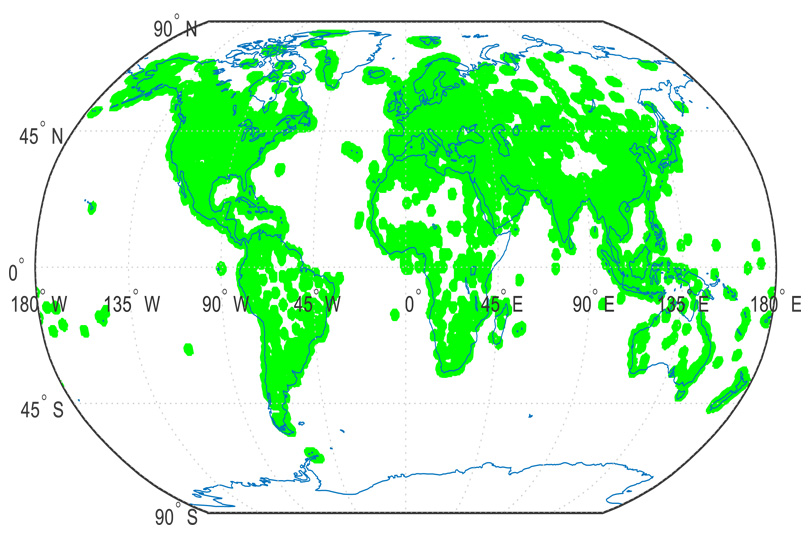

Safety of air transportation strongly depends on the performance of on-board positioning sensors. Positioning by data from navigational aids is considered by international aviation community as one of the main stand-by positioning approaches onboard of civil airplanes. However, only positioning by pair of distance measuring equipment (DME) meets requirements of Performance-Based Navigation. A DME service volume model based on path loss between a pair of transmitting and receiving antennas has been proposed in the paper. The model takes into account the influence of relief on radio waves propagation and diffraction from high-altitude elements of relief. The proposed model has been used in the analysis of DME global network performance. In particular, performance of a global network is analyzed based on availability area of DME service, area of positioning by pairs of DME/DME support, availability of particular positioning accuracy, and areas of meeting various RNAV requirements. Obtained results indicate that only in 27.76% of global airspace a DME service can be provided. However, only within 15.9% of airspace, a DME/DME positioning can be used. Results of the analysis indicate about the necessity of actions for further development of global navigational aids network in order to guarantee safe airlines connections around the globe.
